Low Profile Heavy Deck-Over Equipment Trailers
Low Pro Tag
The Low Profile Deck-Over tag design delivers a 33″ loaded deck height, providing operators with load versatility and ease of use with loading low-clearance equipment. Constructed with fabricated/ engineered main frame beams which are pierced for the cross members to be inserted through, producing the lower deck height.
Low Pro Paver
The Low Pro Paver series is designed specifically for the paving contractor. The 11′ ramp length provides a shallow load angle that allows for easy loading of most paving equipment. Our patented air-operated bi-fold ramps (U.S. Patent 11,613,197) fold out into the extended position before they contact the ground to eliminate any marring of finished surfaces. Felling offers 3 models in the Low Pro Paver lineup.
Low Pro Heavy Duty
The Low Pro Heavy Duty (LP HD) series is constructed with a 10” structural channel full-length side rail (flanges out), Jr. I-Beam crossmembers 12” on center pierced through the heavy-duty, engineered, and fabricated 16” tall mainframe beams, and is standard with 1-3/8″ apitong decking. The LP HD design was driven by the needs of wide-set heavy loads, with the flange-out side rail construction it allows for optional outriggers to provide additional support and load distribution.
Product Specs
- Height: 33″ Loaded / 35″ Unloaded – 41″ Loaded / 43″ Unloaded
- Weight: 6,620 lbs. – 11,400 lbs.
- Towing Capacity: 19,280 to 60,000 lbs.
Features
- Engineered Fabricated Hi-Tensile Grade 80 Main Frame Beams with Grade 80 Jr-I Cross-Members
- Self Cleaning 5″ x 3″ Angle Iron Beavertail
- 5′ x 20″ Self Cleaning 5″ X 3″ Angle Iron Spring Assist

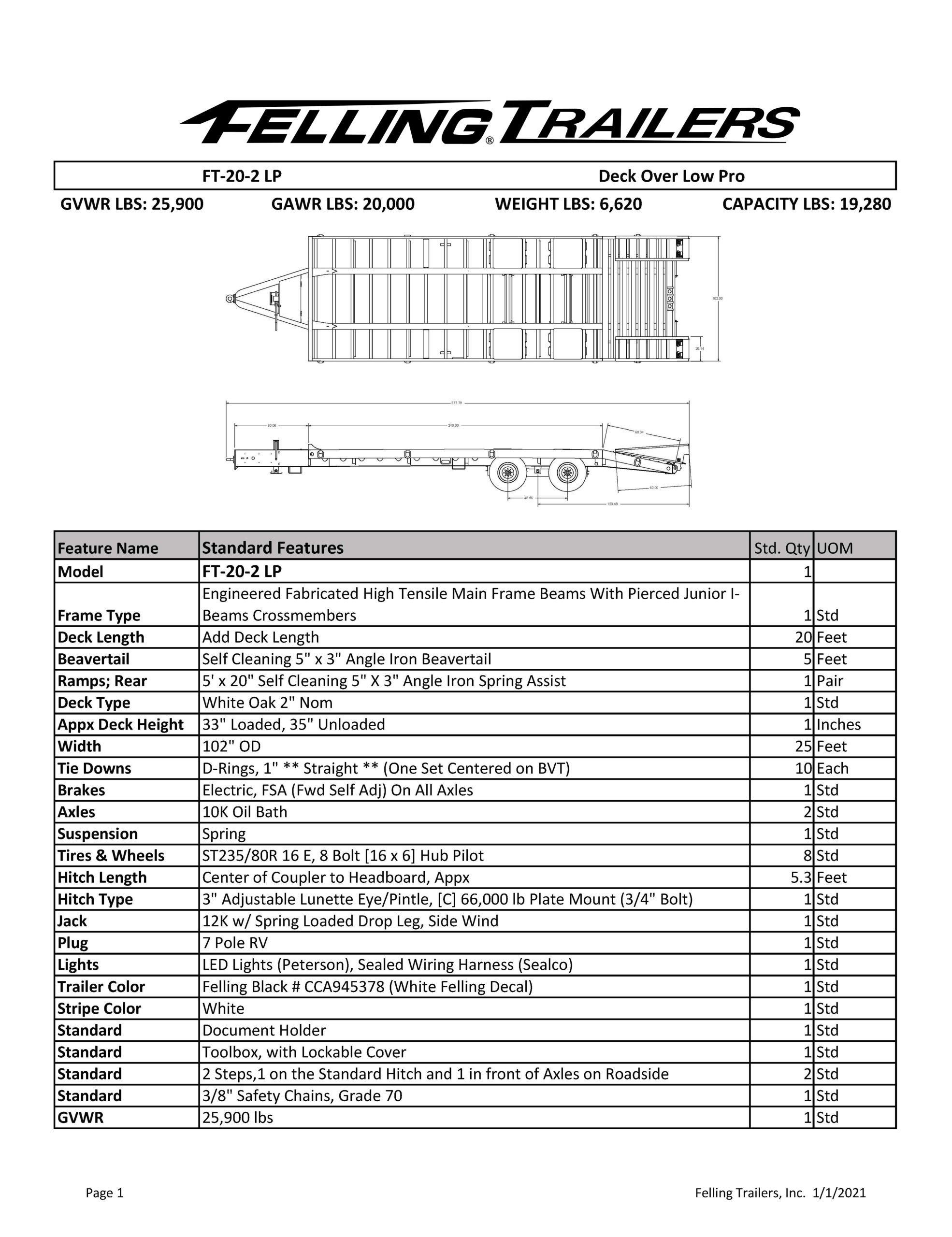

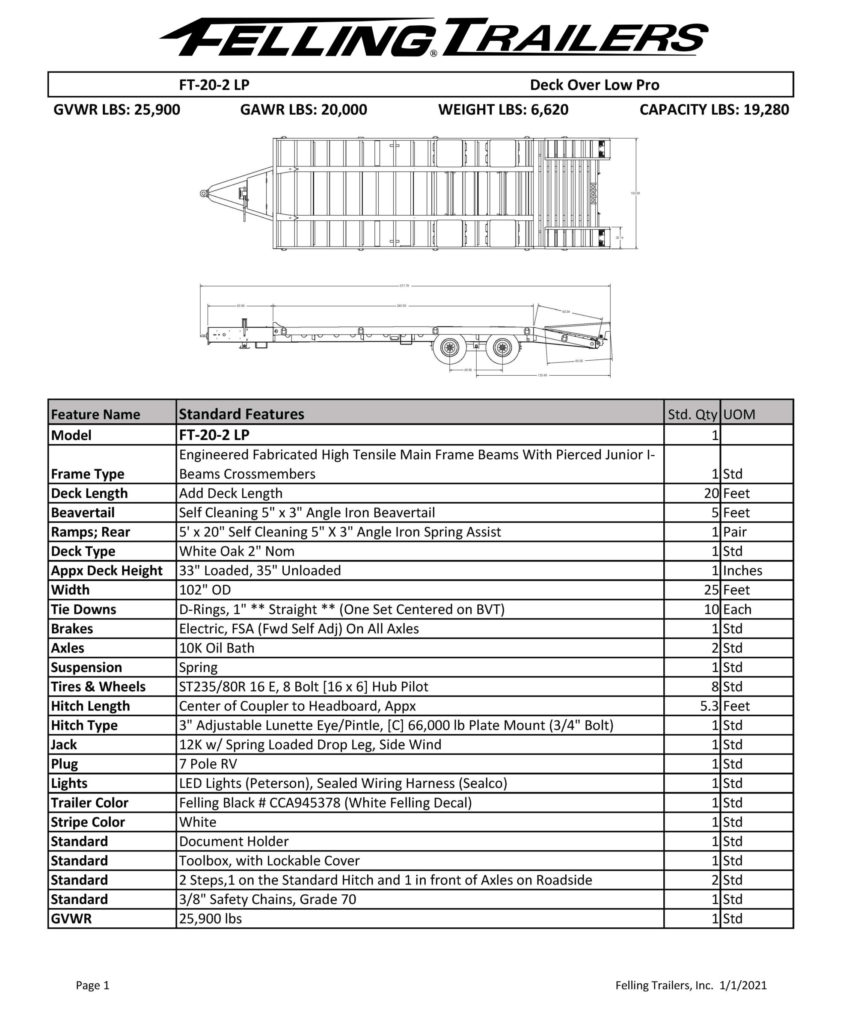

Low Profile Deck-Over Equipment Trailer Product Sheets
View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form.
