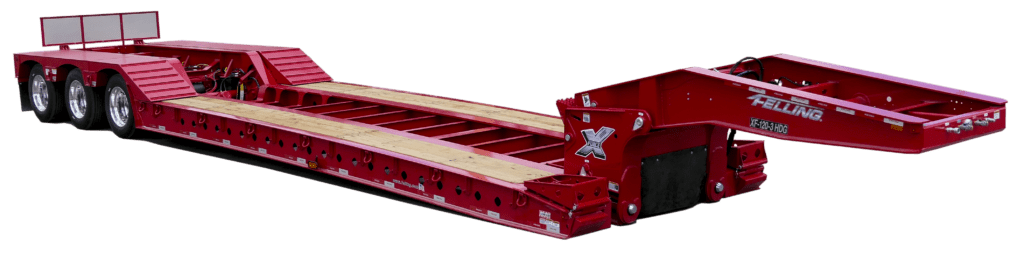

X-Force HDG Series
X-Force Hydraulic Detachable Gooseneck model specifications
The X-Force HDG is one of the industry’s most user-friendly hydraulic detachable gooseneck trailers on the market. One of Felling’s key goals with the X-Force HDG design was to keep the focus on user/operator ease of use.
Product Specs
- Capacity: 70,000 lbs. to 120,000 lbs. in 16′
- GVWR: 84,500 lbs. to 139,500 lbs.
- Deck Height (loaded): 24″ Loaded, 8″ Ground Clearance,
L Models – 19.5″ Loaded, 6″ Ground Clearance
Features
- 16″ kingpin set back, 84″, 96″, 108″, + 114″ swing clearance
- Hydraulic Controls – Std. liquid-filled hydraulic pressure gauge for supply line pressure
- Gooseneck Locking System with lock pin release & secondary lock handle
- Ride Height Cam Blocks Arm Control
- Modular Trunnion Approach 20º, 28º, 35º, and 45º options available
- 360º swivel D-rings on Trunnion Bolsters
X-Force HDG Series Product Sheets
View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form.
Request a Quote from Our Trailer Experts
Like any Felling product line, these lowboys are built to your spec. Option them with the features you need for the various cargo you transport. Do you need a lowboy trailer with ramps that offer a more gradual incline for front-loading cumbersome loading equipment? Talk with our Trailer Experts about the front ramp options available, 48″ to 72″ standup ramps with a tapered approach. Or are you looking for the ability to load/offload without detaching your lowboy’s gooseneck? Then let our Trailer Experts show you the expansive rear ramp options available to equip your lowboy trailer with ramps. Air operated or hydraulic, wood inlaid or self-cleaning angle iron, we have the features you need to get the job done right.
