AG Series

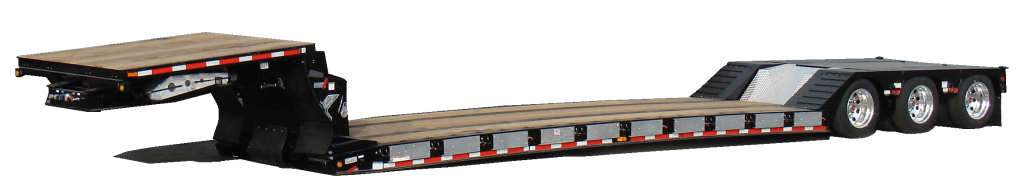

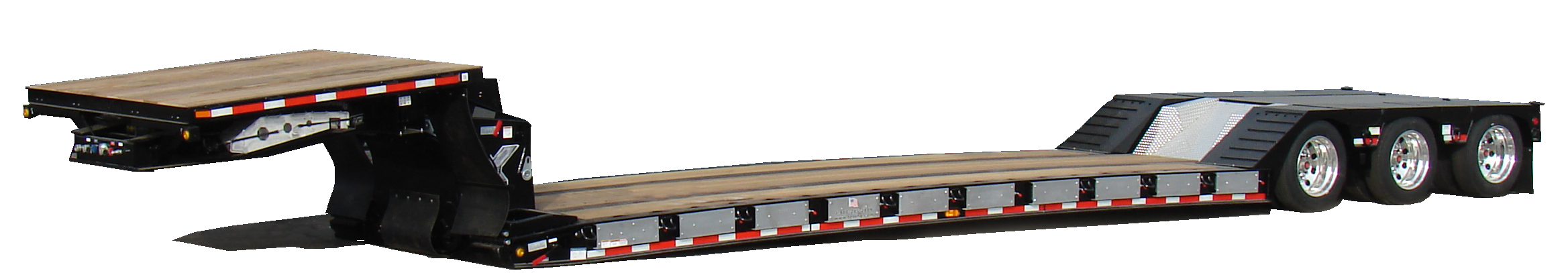

Transporting AG equipment just got easier with the X-FORCE AG Series hydraulic detachable gooseneck.

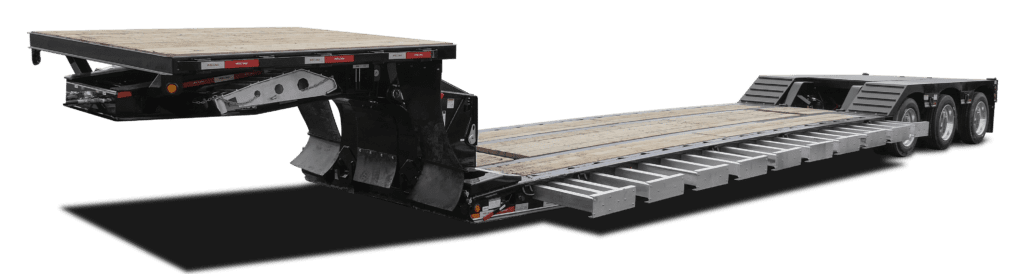

The X-Force AG series is equipped with aluminum pull-out outriggers/pull-out side extensions to make transporting machinery like combines, choppers, sprayers, and more a breeze. Plus as an added benefit, the X-Force AG series is also equipped with full-length flat top modular wheel covers, providing you with extra usable deck space to transport your loads.
Product Specs
- Capacity: 70,000 lbs. to 100,000 lbs. distributed in 16′
- GVWR: 88,500 lbs. to 133,200 lbs.
- Deck Height (loaded): 24″ Loaded, 8″ Ground Clearance
L (Low) Models 19.5″ Loaded, 6″ Ground Clearance
Features
- 11’ Hydraulic Detachable Gooseneck
84” or 96” Std. Swing Clearance (Depending on Model) - (2) 7” Lift Cylinders, 5 Position Ride Height Cam Blocks
- Main Deck: Engineered, Cambered, Fabricated 16” Main Beams and Side
- Pullout Outriggers: 16” on Centers, 2 – Tubes per Pullout, Extends up to
- 33”, Aluminum Tube, with 2 – Piece Aluminum Outrigger Approach Ramps with Ramp Storage
- Rear Deck & Trunnion: Wheel Covers Full Length Flat Top Modular 20K Load Bearing
X-Force AG Series Product Sheets
View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form.
