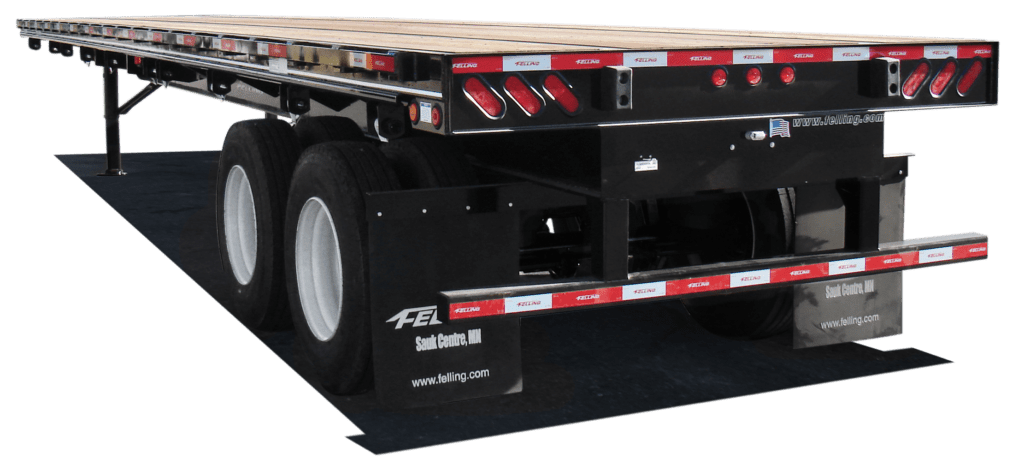

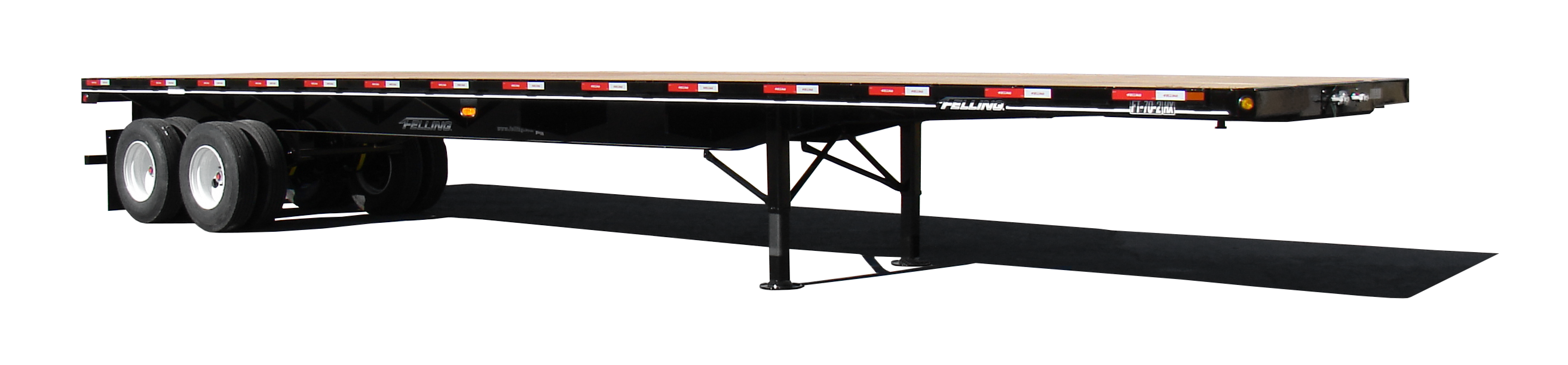

Felling’s HX-High Flatbed Semi Trailer is an open/flat style trailer that can be utilized to transport a variety of cargo.
You may have heard this style trailer referred to as a flat, float, or high boy.
These flatbed semi-trailer units are a good fit when transporting steel,
pre-cast concrete, building materials, lumber, and more. Tandem and tridem axle models are available in a variety of deck lengths.
Felling’s HX Models (High Flats/High Boys) fill the need where other manufacturers won’t. From special deck lengths to custom transport configurations, we have the trailer to meet your hauling needs.
Product Specs
- Capacity: 70,000 lbs. – 100,000 lbs.
- GVWR: 82,500 lbs. – 114,700 lbs.
- Deck Height (loaded): 58″ Front, 55″ Rear
Features
- 84″ sing clearance, 48″ kingpin height, with 30″ kingpin setback
- 200,000 lb. twin 2-speed 63,500 lb. lift capacity jacks
- 80K webs, T-1 flange engineered, cambered fabricated main beam
- Rub rail & stake pockets with double pipe spools
- Suspension 49″ spread air ride, Ridewell 260 Series with dump valve
HX-High Flatbed Semi-Trailer Series Product Sheets
View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form.
